VMC 2020

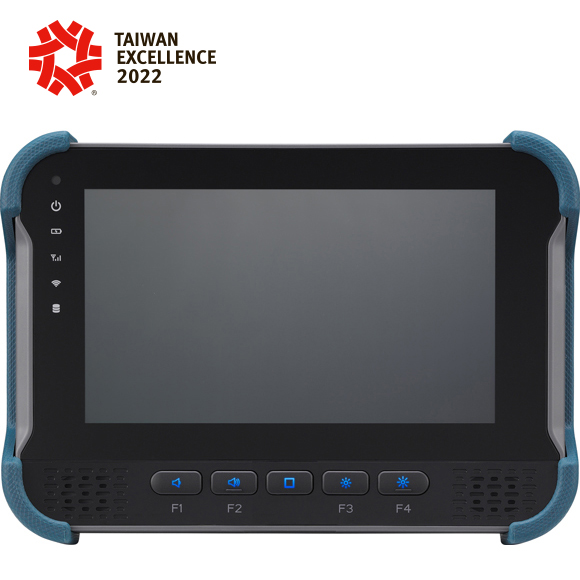

8" Rugged Vehicle Mount Computer
with Intel Atom? E3950 Processor, Projected Capacitive Touch Screen and IP65
  • 主要特點
  • 8" TFT LCD monitor with projected capacitive touch screen
  • IPS LCD with wide viewing angle and resolution 1280 x 720
  • Touch panel covers thickness 3mm for IK08 protection
  • Sunlight readable capability: 1,000 nits LCD brightness
  • CVBS input for analog camera x 4 (optional)
  • Isolated CAN Bus 2.0 x 1
  • Wide range DC input from 9V~60V DC in
  • Complete IP65 waterproof
  • Touchscreen is operable with various gloves (even with water spillage)
加入查詢
產品型錄(PDF)
LCD Panel  8-inch TFT LCD panel with LED backlight 1280 x 720 pixels (HD)  Brightness: 1000 cd/m2 (typical)  Viewing angle: 170° (H)/170°(V)  Contrast ratio: 1000:1 (typical)
Touch Screen Projected capacitive Anti-glare coating surface Transmission rate: 80 ± 3%
CPU  Intel Atom? processor quad core E3950, 1.6 GHz, 12W, 4 core
Memory  1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Storage  1 x eMMC 64GB (BOM optional 128GB)  1 x mSATA (occupied mini-PCIe slot)
Expansion  1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)  1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0)  1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot
GNSS and Onboard Sensor  1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou  Optional M8U modules with dead reckoning available  G Sensor (3-axis, 10-bit resolution)
LAN  1-port LAN, 10/100/1000 Mbps Intel? I210-IT GbE
Security  TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)
I/O Interface-Front  Volume control keys (+/-) with LED  Brightness control keys (+/-) with LED  F1~F4 programmable function keys with LED 1 x Shift key with LED 1 x Light sensor  4 x LED indicators (power, WWAN, WLAN, storage) 2 x Built-in 2W speakers 1 x Built-in Mic
I/O Interface-Lateral Left Side
- 1 x System reset button w/ cover
- 2 x Nano SIM slot w/ cover Right Side
- 1 x Power button
- 1 x USB 3.0 type A connector w/ cover
- 1 x Mic-in, 1 x Line-out w/ cover
I/O Interface-Rear  1 x Full RS232 (COM, w/ 5VDC, 12VDC)  1 x Power connector, M12 A-coded 5-pin  1 x 10/100/1000 Mbps LAN, M12 A-coded  1 x M12 A-coded 8pin for 2 x USB 2.0 1 x M12 (MULTI PORT1, A-coded 8-pin)
- 2 x GPI
- 2 x GPO
- 1 x Isolated CANBus 2.0B 1 x M12 (MULTI PORT2, A-coded 12-pin)
- 1 x RS232 (Tx, Rx)
- 1 x RS232 (Tx, Rx)/RS422/RS485
- PWM (speed) + direction+GND, optional 4 x composite video input/ CAN-06 2 x SMA connector for WWAN 3 x SMA connector for WLAN  1 x SMA connector for Bluetooth 1 x SMA connector for GNSS
Mechanical Cooling system: fanless Enclosure: plastic  IK Rating: IK08 (housing and touch screen) Mounting: VESA 75  Ingress protection: complete IP65  Dimension: 250 x 179 x 67.5 mm Weight: 2.6 kg
Power Management 9V~60V DC in  Reverse protection/over voltage protection/under voltage protection  Ignition on/off control & programmable on/off delay timing  Wake up by LAN, SMS, RTC and ignition
RFID Module (optional, occupied 1 x USB 2.0)  13.56-MHz RFID/contactless standard protocols  Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693
Environment  Operating temperatures: Ambient with air -30°C to 60°C, ambient with air  Storage temperatures: -40°C to 80°C  Relative humidity: 10% to 90% (non-condensing) Vibration (random)
- 2g@5~500 Hz (in operation) Vibration
- Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4
- Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock
- Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g
- Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g
Operating System Windows 10 Linux (Kernel 4.x)
Standards/Certifications CE/FCC class B/E13/IK08
