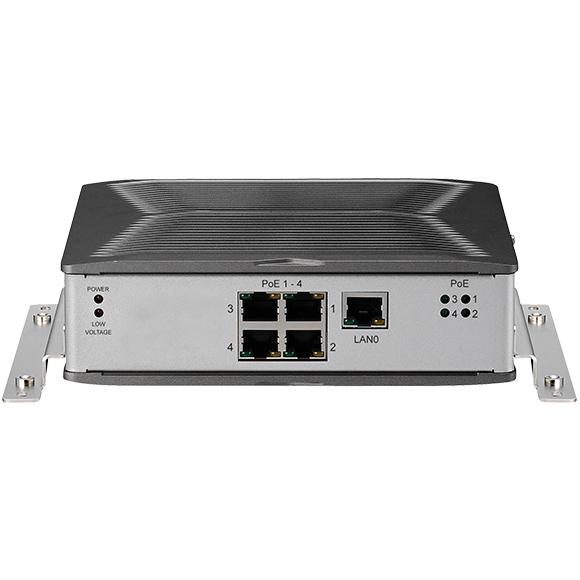

VES30-4S (EOL)
4 + 1 千兆網交換機，支持 4-Port PoE- 主要特點
- 4 x 10/100/1000 Mbps PoE 接口 (802.3af compliance)
- 每個PoE：15.4W at 48VDC
- 低電壓電池保護
- 通過CE/FCC, E13 mark 認證
- 寬壓：9~36VDC
- -30 ~ 70°C 寬溫
- 支持電源點火On/Off
- 電源On/Off延遲設置
加入查詢
產品型錄(PDF)
VES30-4S移動PoE交換機采用無風扇外殼設計，適用惡劣環境的遠程信息處理應用。提供5個千兆以太網端口，包括4個IEEE 802.3af PoE 端口，符合大容量視頻流，聲音和關鍵數據快速平穩的傳輸。
因汽車動力不穩定的性質，移動PoE交換機支持9VDC~36VDC的寬電壓輸入，提供低電池電壓保護的智能電源管理，上電和斷電延時定時器，和自動點火開/關功能。這些獨特的功能確保安全可靠運行，并防止PoE交換機和車輛過早失效。
VES30-4S 是采用無風扇防塵機箱設計，防沖擊和振動，適用-30到70°C的極端溫度環境。移動PoE交換機還采用緊湊尺寸，支持DIN導軌安裝，并輕松安裝PD設備，如IP攝像機和Wi-Fi接入點等。
