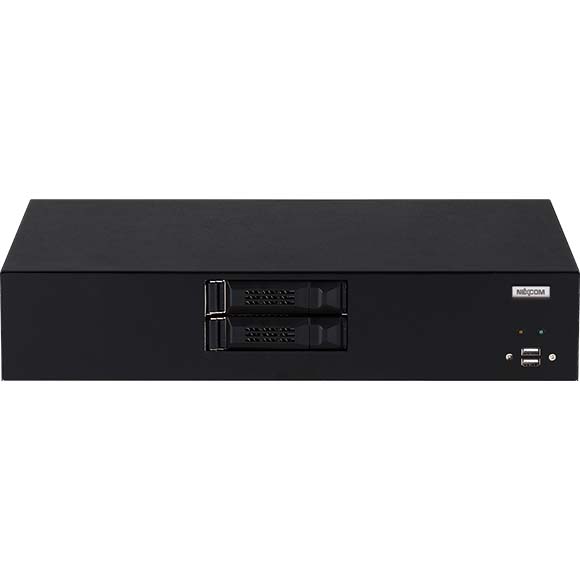

NViS 6602
2U Desktop NVR with 12th/13th Gen Intel? Core? Platform- 主要特點
- System 2U desktop
- 12th/13th Gen Intel? Core?
- HDD 2bays 3.5”+ 3.5” (support RAID 0,1)
- 1 x NVME SSD, 1 x M.2 2242 SATA SSD
- DisplayPort 1.4, HDMI 2.0b x 1, HDMI 1.4 x 1
- DDR4 up to 64GB
- 2 x 2.5GbE Intel? Ethernet
- Audio in/out/Mic
- PCIe x16
The NVR NViS 6602 is equipped with 12th/13th Gen Intel® Core™ processor series, up to 16 core with performance-core for 8 and Efficient-Core for 8, Performance-Core support basic frequency at 2.4GHz max turbo bust at 5.0GHz, and Efficient-Core support basic frequency at 1.8GHz max turbo bust at 3.8GHz, which supports up to 64GB DDR4 3200MHz memory, display support DisplayPort 1.4, HDMI2.0b and HDMI1.4 utilized Intel® UHD graphics 770 controller in real-time display. Moreover, NViS 6602 provides high quality digital stream recording alone with two 3.5” HDD supporting raid 0,1, and integrated SSD support for both NVME and M.2 interfaces. In addition, NViS 6602 supports a wide variety of display I/O configurations, including two Intel® 2.5GbE port, two USB 2.0, four USB 3.2 Gen1, audio interfaces, beside it can add on full length PCIe card to support stream accelerator and AI purpose.
